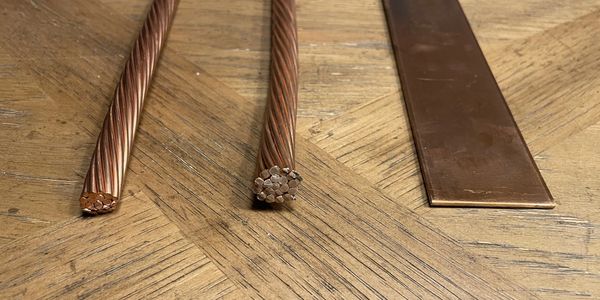

SHINING ARMOR (on the right)
Innovative Ground Grid Conductors
Exeter Ground is an American manufacturer.
We have invented the Next Generation of copper clad steel (Next Gen CCS) buried electrical ground grid conductors, called SHINING ARMOR. Our innovative product solutions provide significantly lower resistance and significantly extended service life for the power grid of the future.
Next Gen CCS
Why Choose SHINING ARMOR?
EXETER's SHINING ARMOR (XSA) is designed specifically for electrical ground grids. All of our alloy-core strips are only the thickness of a single strand of copper but are more flexible and stronger than a copper cable. That's why our products outperform in Resistance, Fusing, Ruggedness, and Corrosion. We are committed to providing reliable, high-quality Made in USA products with 100% American copper, alloy steel, and labor!
50% Lower Ohms!

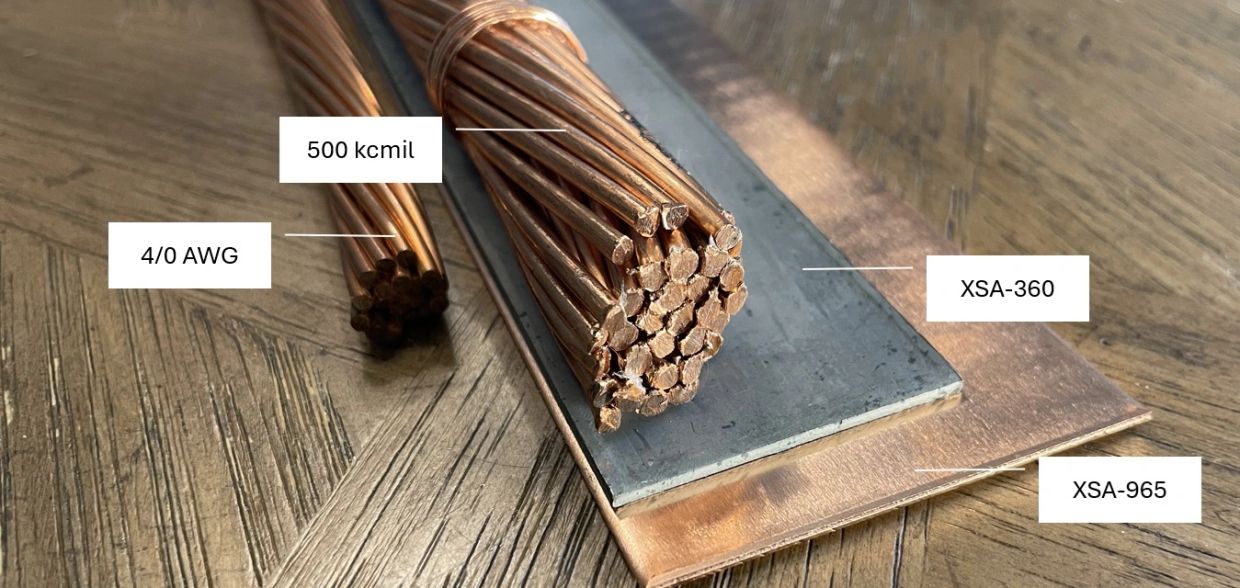

Did you know 500 kcmil cable only gives you a 5% advantage over 4/0 AWG? SHINING ARMOR XSA-965 flexible flat strip gives 50% lower resistance for the same price as 500 kcmil cable.
50% Lower Ohms
By providing more contact surface area with the soil, our alloy steel core conductors drive fault current into the Earth better than anything else!
Where bedrock makes installation nearly impossible, a typical ground grid on 20 ft spacing can even replace the vertical electrodes (ground rods).

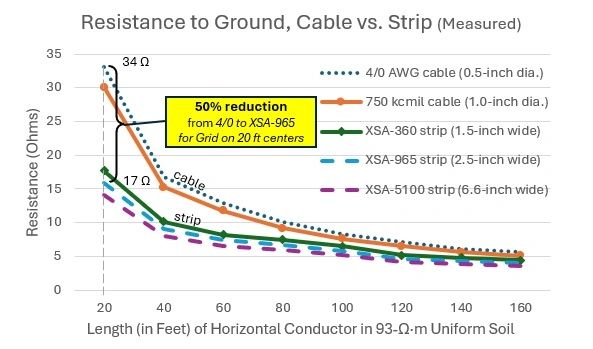

Field measurements shown on this graph are at 93 Ω·m (ideal, low resistance) soil, but the effect is seen in high resistance soil, too. Better contact surface area and two edges drive fault currents to discharge! The effect is reduced at 160 feet, acting then just like regular cable.
Grounding Compliance
Yes, flat strip conductors between ground rods have been in IEEE Std-80 from the beginning!
for Rocky Soils

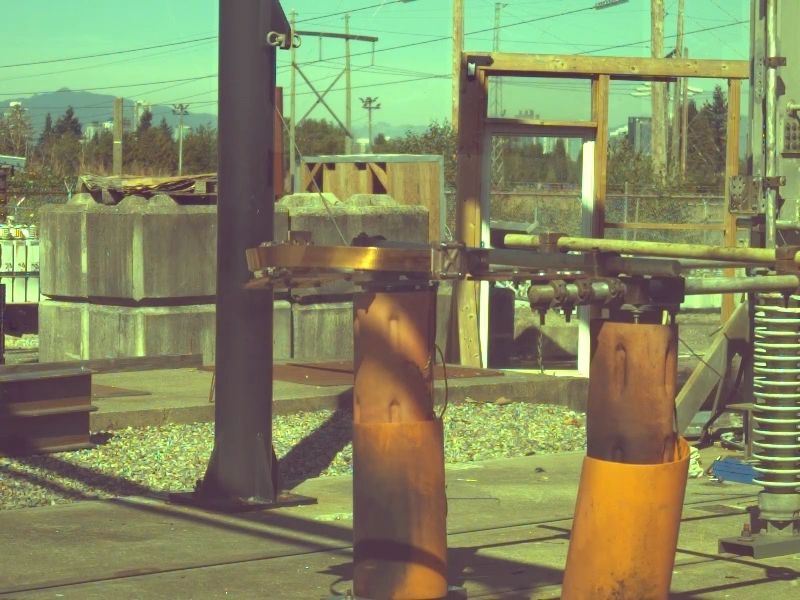

Substations are not always in ideal locations or ideal soils and sometimes vertical electrodes (ground rods) can be impossible to install.
up to 23-inch wide
In extreme cases, even XSA-965 (2.5 inch wide) may not be enough, but we can go even wider!
100-yr Buried Service
More corrosion-resistant than copper! SHINING ARMOR is designed to block the flow of electrons, and as such, it reverses corrosion and extends the life of the installed system almost indefinitely!
Corrosion is an electro-chemical reaction. In the electrolytic soil, metal is stolen from the more negatively-charged portion of the wire, strip, or cable to the more positively charged one. Copper is not immune from corrosion. Copper cables have natural defenses but can lose 1 or 2 mils of diameter per year. In SHINING ARMOR, corrosion is eliminated by design, and the result is a 100-year service life. And possibly much, much longer than that!
About Us
Designers at Heart
At Exeter Ground, we love getting our hands dirty.
We provide high-quality grounding products to our Electric Utility clients worldwide. Led by former product development engineers, we have established ourselves as reliable and trusted partners in the power generation, transmission, distribution, renewable energy, energy storage, and data center communities.
Our Services
We also love to have a great time with our industry friends!
We volunteer heavily in the high power electrical "standards" communities, including IEEE Standards 80, 81, 837, and CEATI G&L. We aim to broaden participation by encouraging other manufacturers and Utility customers to support the safety of our linemen ("essential workers").
The Factory
Our factories are operated by seasoned machinists and metallurgists.
SHINING ARMOR is made in ISO 9001 certified facilities operating since 1916 and producing electrical devices, automotive parts, and other specialty products. We stand ready to support rapid growth in ground grids for data centers, artificial intelligence, and high power transmission.
